Manual Telescopic Bollards

Category: .


Our range of telescopic bollards allow protection of parking bays, store frontages and pedestrian zones etc, whilst retaining the ability to allow vehicle access to the protected area without any obstacles.

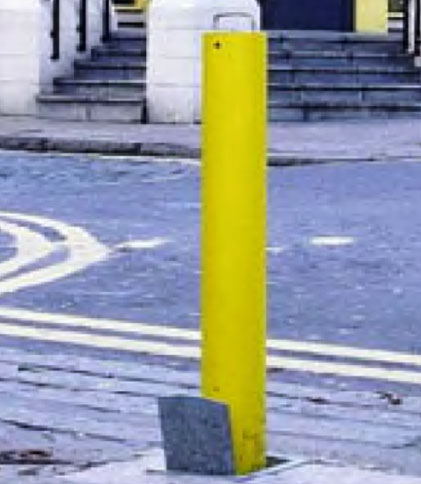

The bollards retract vertically into the ground, and are locked in either the raised or retracted positions by an integral security cam-lock When in the retracted position, the bollard is covered by a flush steel tread plate cover, so no tripping hazard is present.

The bollards are available in a range of sizes and in mild steel or stainless steel materials.

Mild steel bollards are polyester powder coated in black or yellow as standard, whilst the stainless steel versions are supplied with a contemporary brushed effect. For aggressive environments mild steel bollards can be galvanised prior to powder coating and stainless steel bollards can be produced from 316 marine grade stainless steel rather than the standard 304 grade material.

Available Models

Product Code Model
CR-HDRTEL-P 670mm high x 90mm dia x 8mm wall thickness mild steel bollard
CR-HDSTEL-P 670mm high x 90mm across flats x 8mm wall thickness mild steel bollard
CR-LARTEL-P 670mm high x 114mm dia x 8mm wall thickness mild steel bollard
CR-67TELS-S 670mm high x 90mm dia x 5mm wall thickness stainless steel bollard
CR-85TELS-S 850mm high x 114mm dia x 3.6mm wall thickness stainless steel bollard

Standard Specification

Construction Fully welded mild steel or brushed 304 grade stainless steel
Finish Polyester powder coated – black or yellow. Stainless steel versions have a brushed effect finish
Dimensions B model 1545mm w x 1404mm d x 2266mm h; D model: 1500mm w x 1318mm d x 2261 mm h
Weight 25-35kg depending on specification
Optional Items
Non-Standard Colours Standard RAL reference colours
Marine Grade Stainless Steel 316 grade brushed stainless steel
Reflective Bands Class 2 retro-reflective band in white, yellow or red
