Fold Down Bollards

Category: .

£0.00

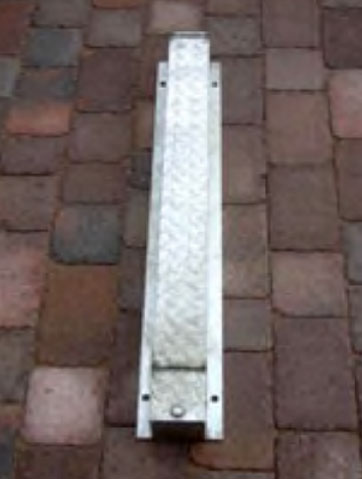

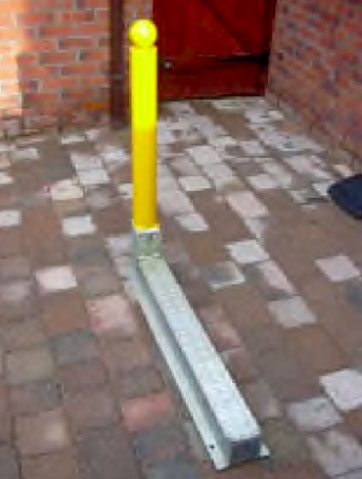

This bollard is a simple solution for parking bay protection and similar applications. The bollard is housed in a recessed casing to eliminate any tripping hazard when the bollard is retracted The hinged lid is fitted with a cam lock to secure the bollard in either the raised or recessed position.

Manufactured from fully welded mild steel, the bollard and casing are galvanised after welding and we are also able to offer a polyurethane paint finish in black or yellow if required.

Installation involves less groundworks than traditional retractable bollards and is ideal where a limited depth of excavation is needed.

Standard Specification

Construction Fully welded mild steel with checker plate hinged lid
Finish Galvanised after welding

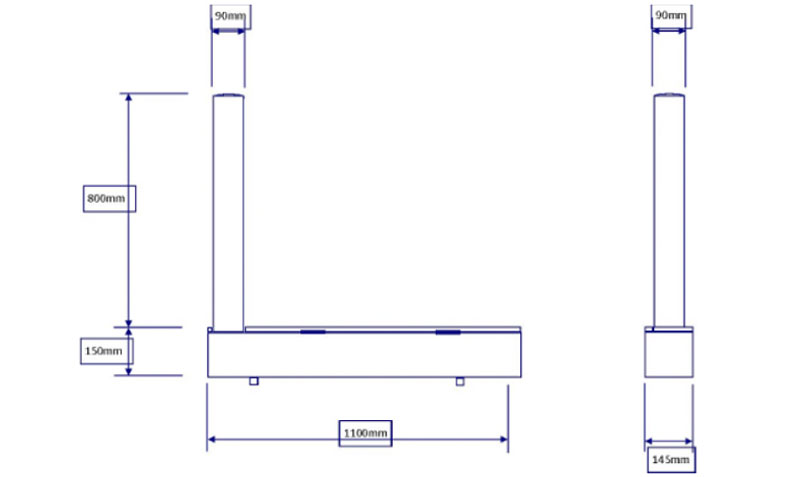

Dimensions – Bollard 900mm height x 76mm diameter
Dimensions – Casing 1160mm length x 145mm width x 150mm depth
Weigth 50kg Total
Locking Cam lock with 2 keys provided
Optional Items
Non-standard Finish Polyester powder coated in yellow or black
Reflective Bands Class 2 retro-reflective band in white, yellow or red
Decorative Sphere Welded steel sphere to top of bollard
